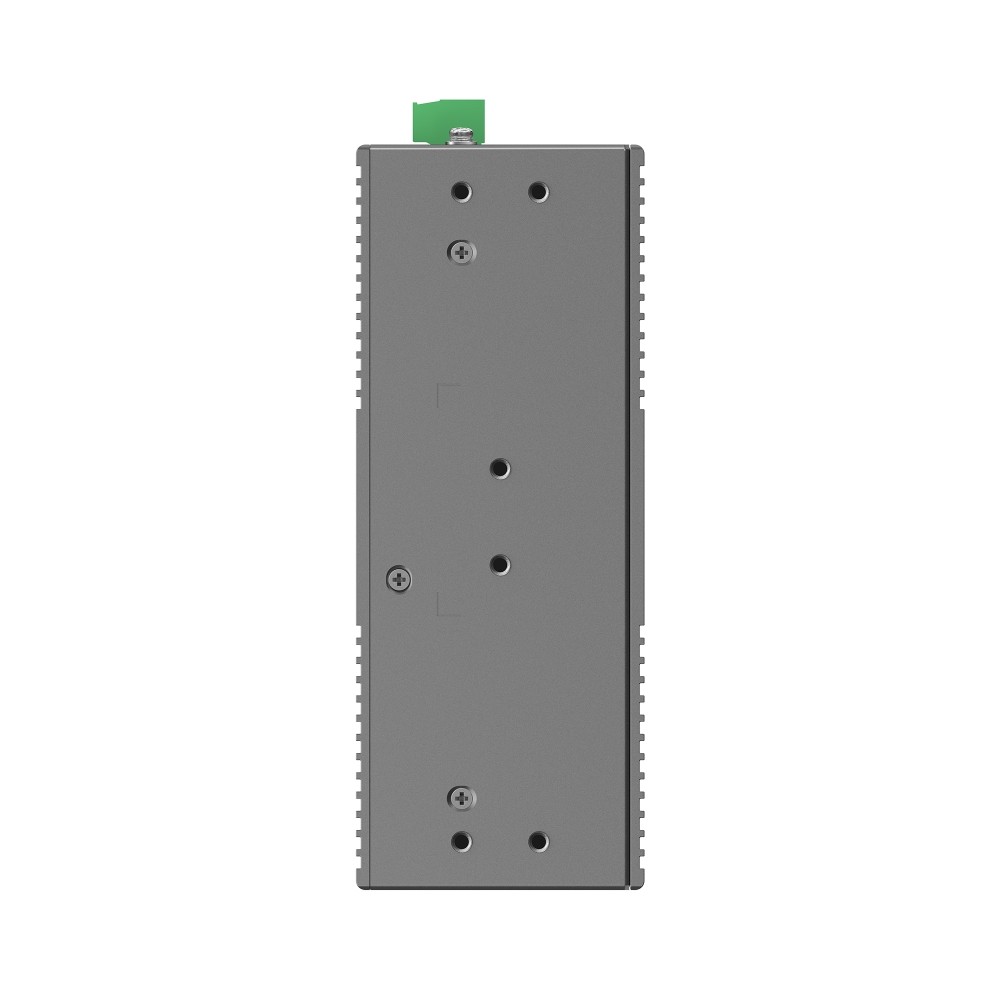

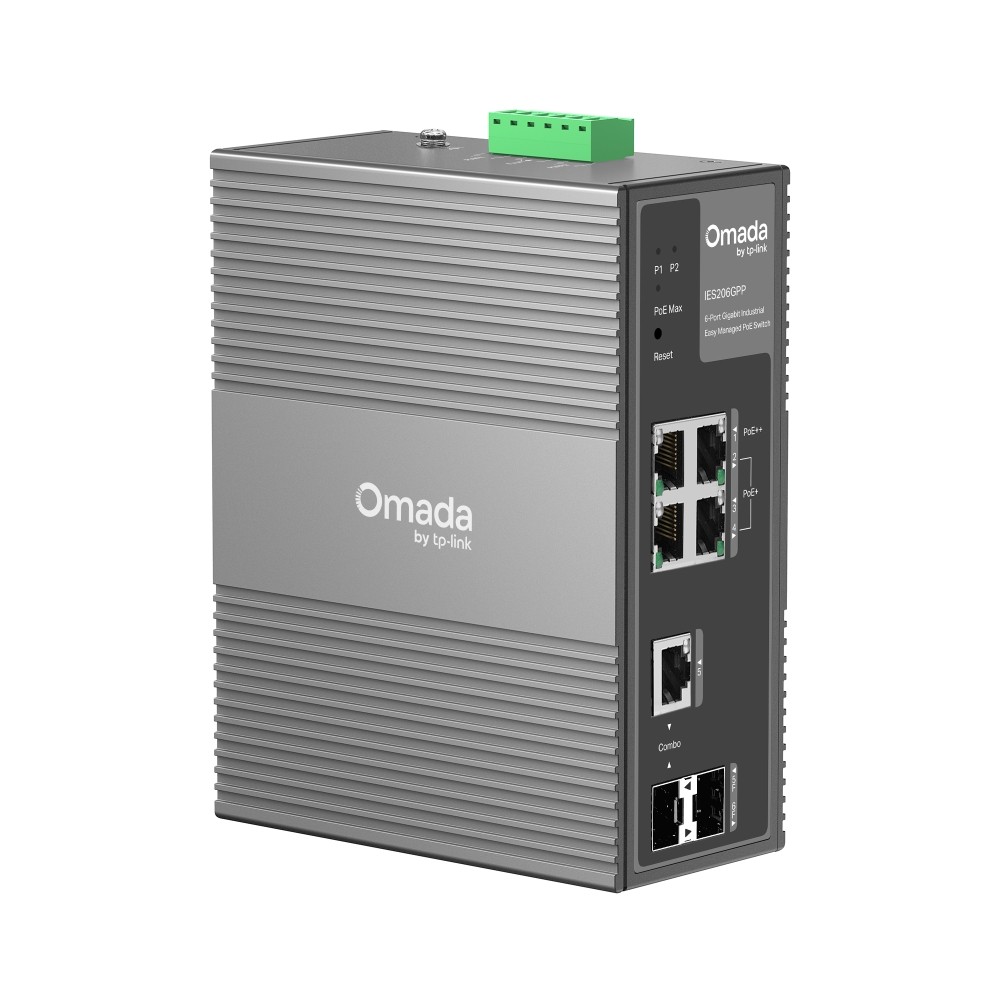

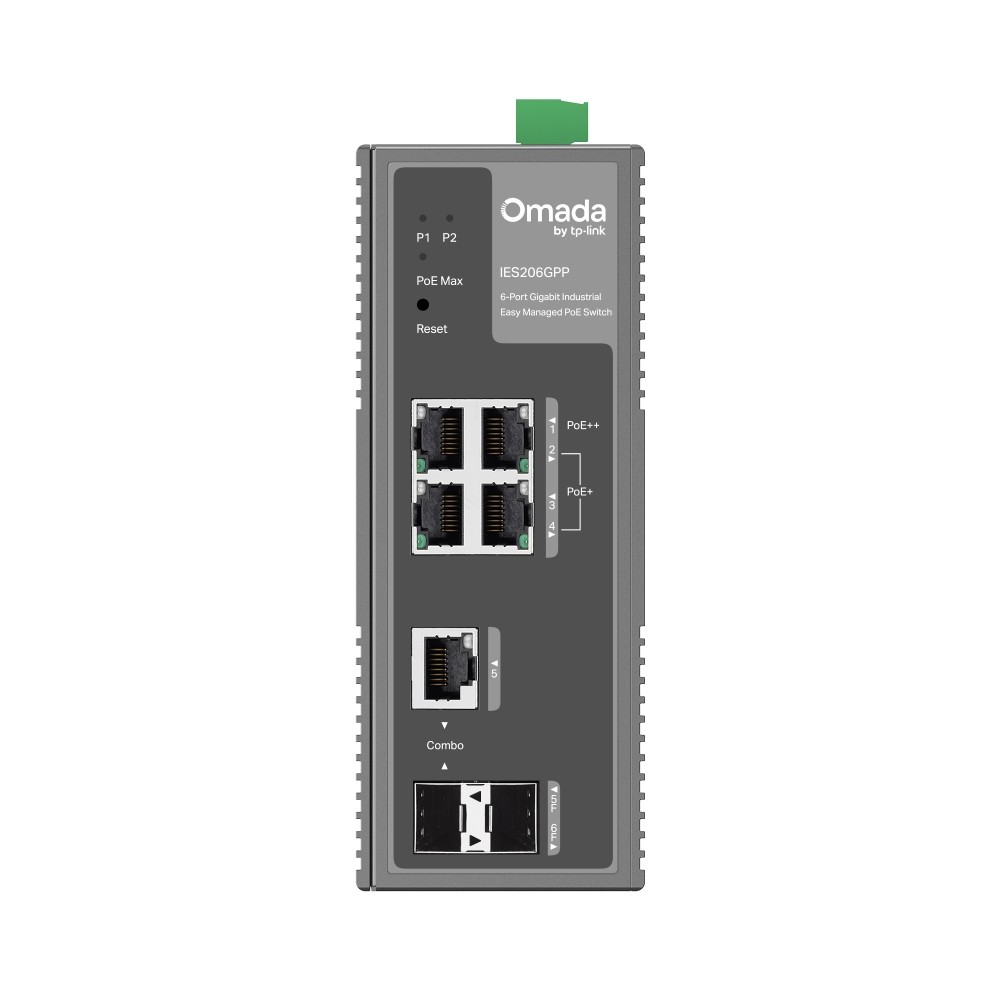

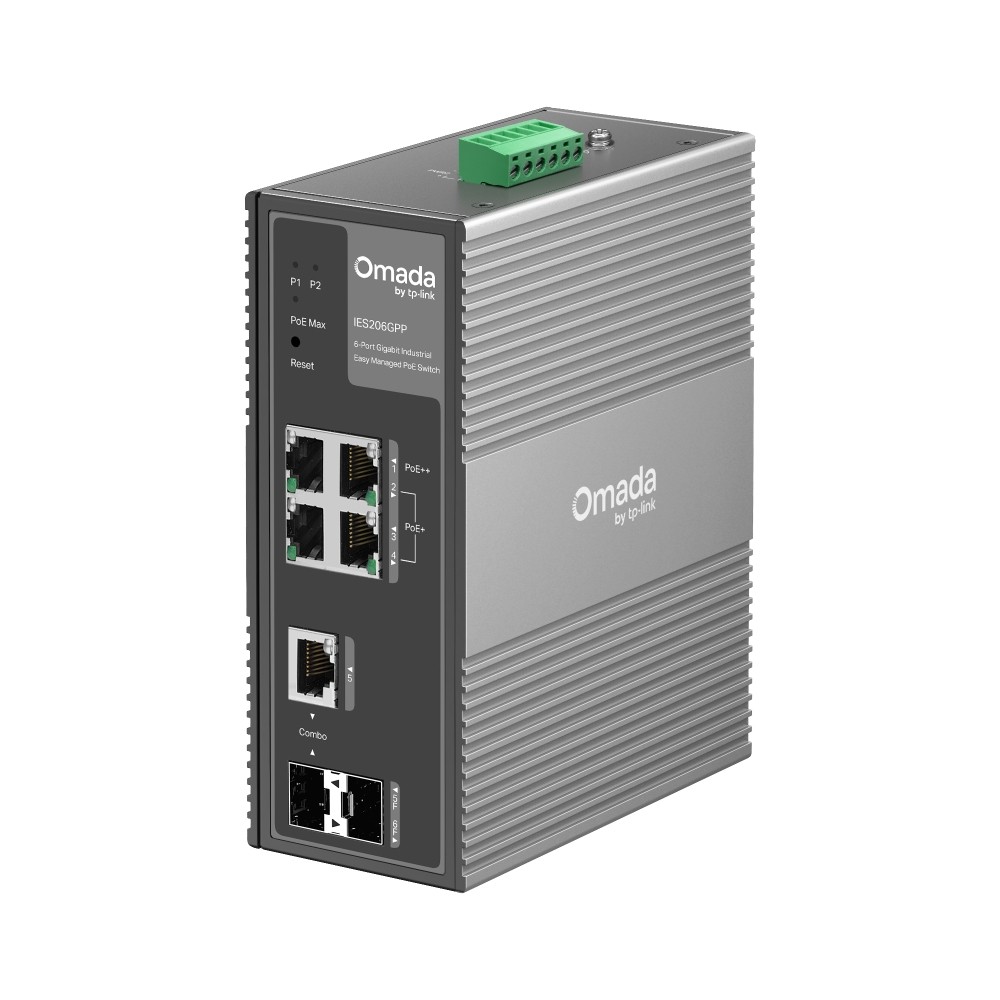

TP-Link IES206GPP
Guarantee: 60 mth
Description: Omada Industrial Easy Managed Switch, 6 Gigabit ports, including 3 PoE+ ports and 1 PoE port 4 Gigabit RJ45 ports (1 PoE++, 3 PoE+) 1 Gigabit Combo RJ45/SFP port and 1 Gigabit SFP slot PoE power supply with a total power of 120W and a maximum of 60W PoE per PoE port Professional, industrial-grade design: -40-75°C operating temperature, 6kV lightning protection, and 1+1 redundant power input Advanced features: Up to 250m PoE transmission range, VLAN, QoS, and STP/RSTP Centralized cloud management via website or Omada app Rugged, IP40 aluminum housing with DIN rail and wall mounting options

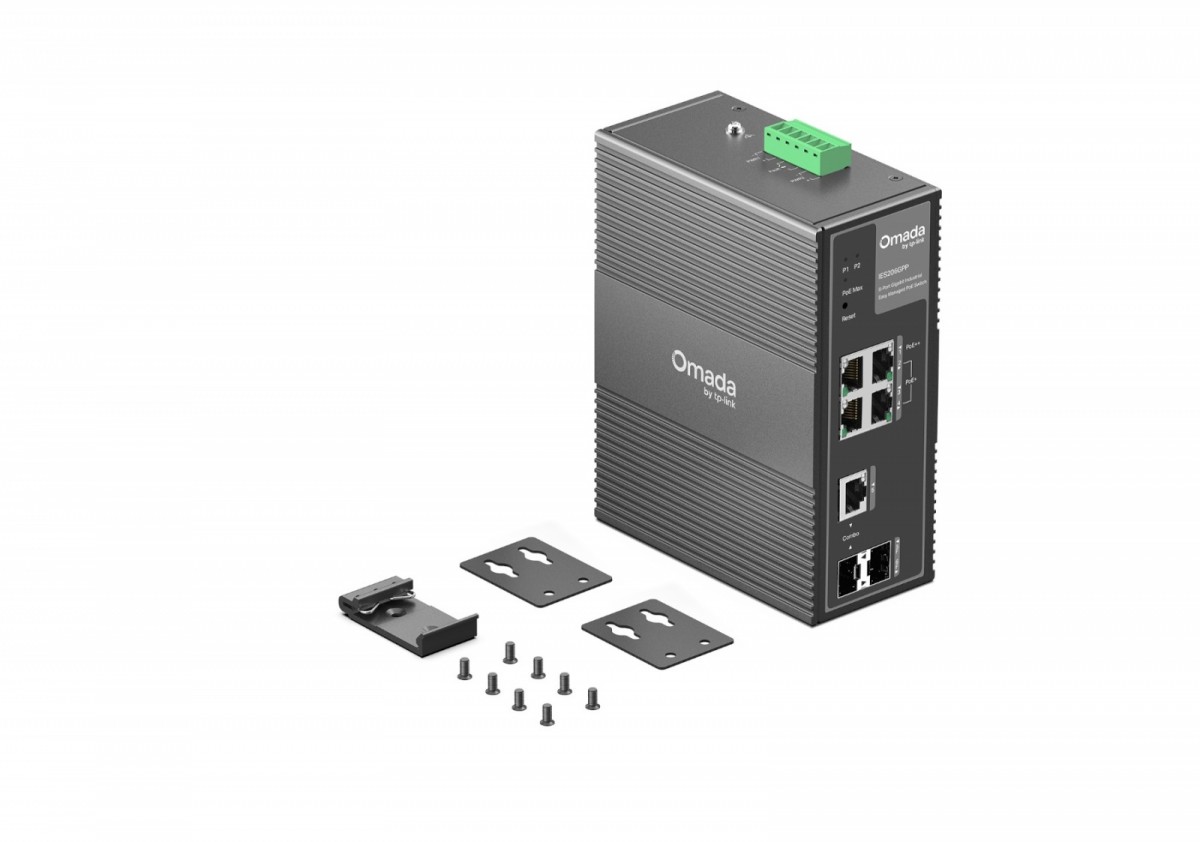

Accessories included: IES206GPP DIN Rail Mounting Bracket Wall Mounting Plates Installation Instructions
Manufacturer's index: IES206GPP
EAN: 1210002602051
Manufacturer: TP-LINK
Availability: 3
Description: Omada Industrial Easy Managed Switch, 6 Gigabit ports, including 3 PoE+ ports and 1 PoE port 4 Gigabit RJ45 ports (1 PoE++, 3 PoE+) 1 Gigabit Combo RJ45/SFP port and 1 Gigabit SFP slot PoE power supply with a total power of 120W and a maximum of 60W PoE per PoE port Professional, industrial-grade design: -40-75°C operating temperature, 6kV lightning protection, and 1+1 redundant power input Advanced features: Up to 250m PoE transmission range, VLAN, QoS, and STP/RSTP Centralized cloud management via website or Omada app Rugged, IP40 aluminum housing with DIN rail and wall mounting options
Accessories included: IES206GPP DIN Rail Mounting Bracket Wall Mounting Plates Installation Instructions
| Basic | |
| Number of COMBO ports: | 1 |
| Number of SFP ports: | 1 |

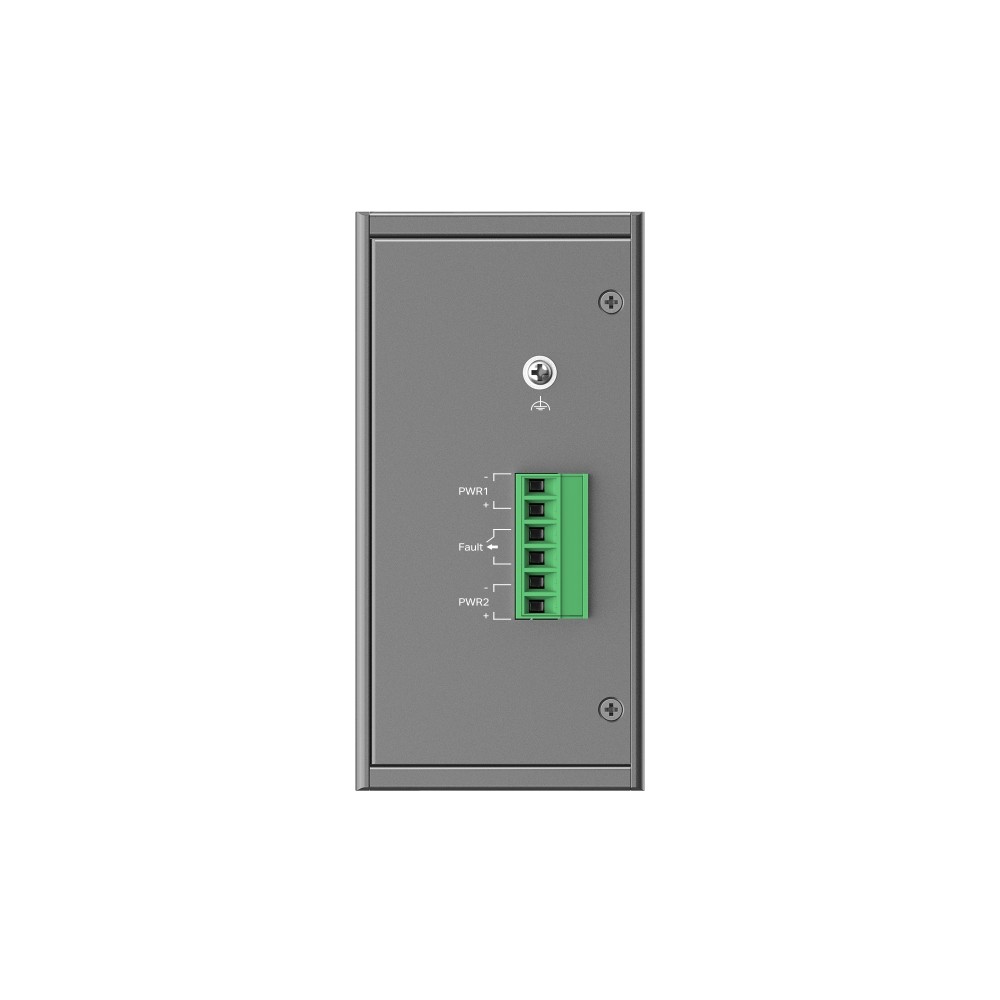

| Power supply: | 1+1 DC 12-57V redundant power input |
| Throughput: | 12 |
| Jumbo frame size: | 15 |
| Number of VLAN groups: | 32 |
| Memory buffer: | 4 |
| Number of PoE ports (PoE & PoE+): | 4 |
| Forwarding rate: | 8.93 |
| MAC address table size: | 8000 |
| QoS: | 802.1p DSCP Priority 8 Priority Queues Priority Scheduling Mode WRR (Weighted Round Robin) Queue Wei |
| Network architecture: | GigabitEthernet |
| Application: | Home and small office |
| Switch layer: | L2 |
| L2 features: | Link Aggregation Static Link Aggregation Up to 2 aggregation groups and up to 4 ports per group Loop |
| Switch class: | Managed |
| VLAN: | MTU VLAN Port-based VLAN 802.1Q Tag VLAN Max. 32 VLAN groups 4K VID |
| Fan: | No |
| Number of 10/100 Mbps ports: | None |
| Number of 10/100/1000 Mbps ports: | None |
| 10/100/1000/2500 Mbps ports: | None |
| Number of PoE+ ports: | None |
| Number of QSFP+ ports: | None |
| Number of 10Gb ports: | None |
| Number of SFP+ ports: | None |
| Environment requirements: | Permissible operating temperature: -40-75°C Permissible storage temperature: -40-85°C Permissible |
| Chassis type: | Rack |
| Forwarding mode: | Store-and-forward |
| Support for Jumbo frames: | Yes |
| SFP28 ports: | 1 |
| Number of PoE++ ports: | 1 |
| Dimensions: | 155 × 120 × 60 mm |
| Number of SFP56 ports: | None |
| Number of ports 25Gb: | None |
| Management, monitoring, configuration: | Omada App: Yes. Requires the use of an Omada Hardware Controller, Omada Cloud-based Controller, or O |
