Managed Switches

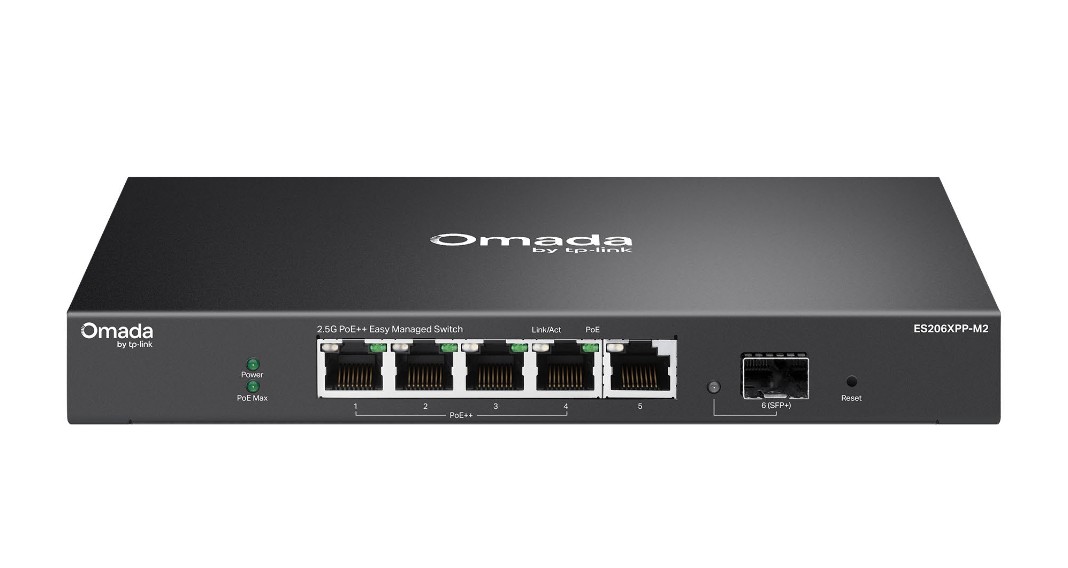

Switch Omada Easy Managed, 5 ports 2,5G included 4 ports PoE++, 1 slot SFP+ 10G

TP-LINK

Guarantee: 60 mth
Description: ES206XPP-M2Omada 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++ 5 x 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++) 1 x 10 Gbps SFP+ Slot 120W PoE Budget, with up to 90W for each PoE port Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features Centralized Cloud Management via the web or the Omada app Automatic Loop Prevention, VLAN, Port Isolation, QoS, and IGMP Snooping Fanless design for silent operation Durable metal casing and desktop/wall mounting design

Manufacturer's index: ES206XPP-M2
EAN: 1210002600965
Manufacturer: TP-LINK

Status: available immediately
To compare Add to wish list
GET A BETTER PRICE ! Write or call and you will receive the support of a dedicated sales representative.
Guarantee: 60 mth
Description: ES206XPP-M2Omada 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++ 5 x 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++) 1 x 10 Gbps SFP+ Slot 120W PoE Budget, with up to 90W for each PoE port Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features Centralized Cloud Management via the web or the Omada app Automatic Loop Prevention, VLAN, Port Isolation, QoS, and IGMP Snooping Fanless design for silent operation Durable metal casing and desktop/wall mounting design
Basic
QoS: 802.1p DSCP Priority 8 Priority Queues Priority Schedule Mode WRR (Weighted Round Robin) Queue Weig
Certificates: CE FCC RoHS
Supported protocols and standards: IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3u:100BASE-X Fast Ethernet IEEE 8
L2 features: Link Aggregation Static Link Aggregation Up to 2 aggregation groups and up to 4 ports per group Loo
VLAN: MTU VLAN Port-Based VLAN 802.1Q Tag VLAN Max 32 VLAN Groups 4K VID
Environment requirements: Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F) Storage Temperature: -40 °C to 70 °C
Weight:0.67
Number of SFP+ ports:1
Number of 10Gb ports:1
Jumbo frame size:10
Power consumption:141.4
MAC address table size:16000
Number of VLAN groups:32
Forwarding rate:33.48
Throughput:45
10/100/1000/2500 Mbps ports:5
Packet buffer:5
Mean time between failures (MTBF):702277
Power supply:AC/DC Adapter (Input: 100-240V AC; Output: 53.5VDC / 2.43A)External
Chassis type:Desktop
Network architecture:GigabitEthernet
Switch layer:L2
Switch class:Managed
Application:Medium and large companies
Stackability:No
Fan:No
Other functions:SDN Support: Support Hardware Controller, Software Controller, Cloud-Based Controller Automatic Dev
Forwarding mode:Store-and-forward
Support for Jumbo frames:Yes
Management, monitoring, configuration: Web-based GUI DHCP Client Cable Diagnostics
Data Act:Dimensions:209 x 126 x 26 mm
Number of PoE++ ports:4
Console port:No
