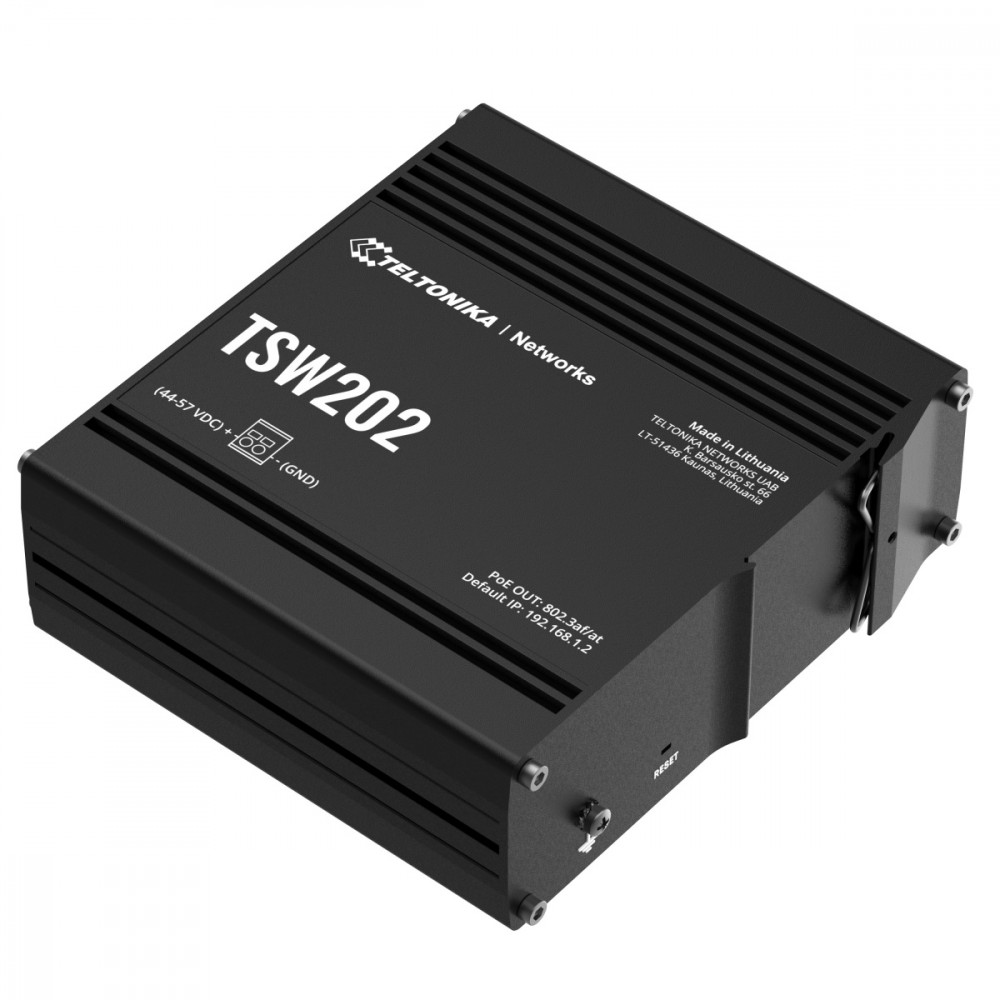

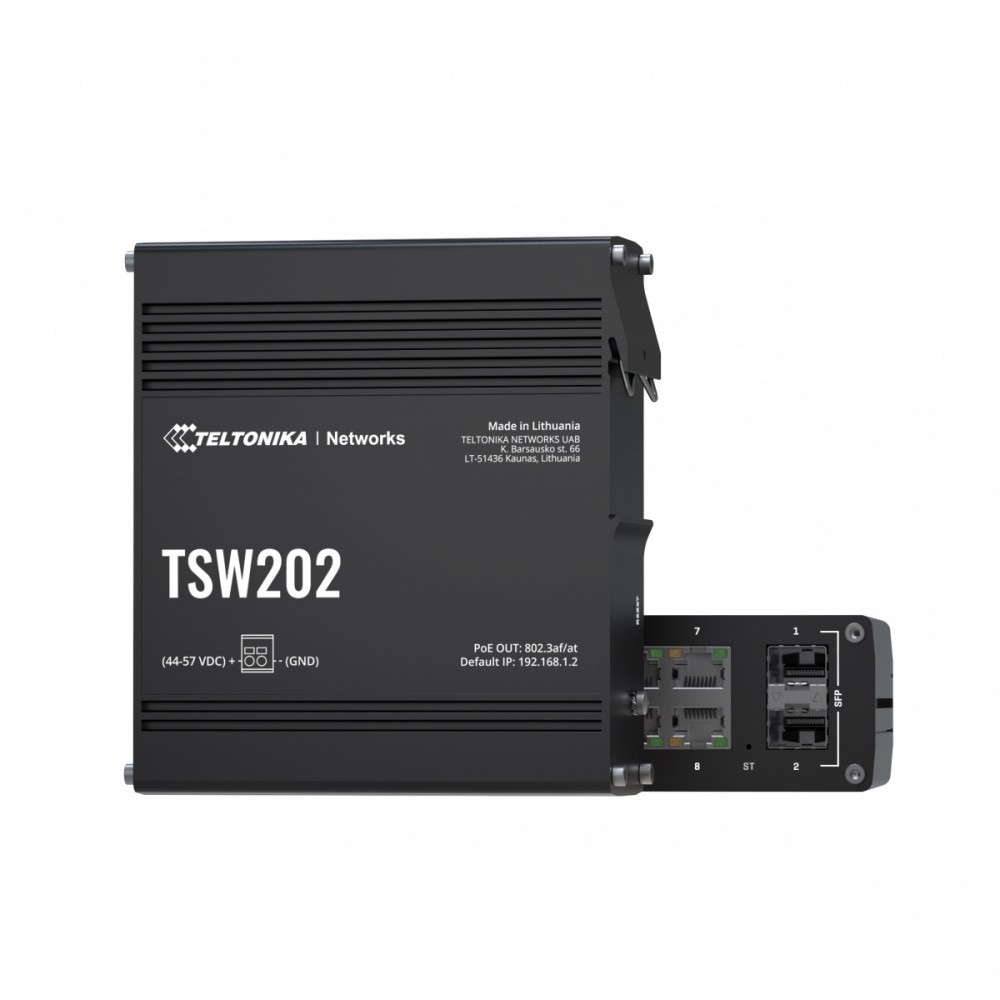

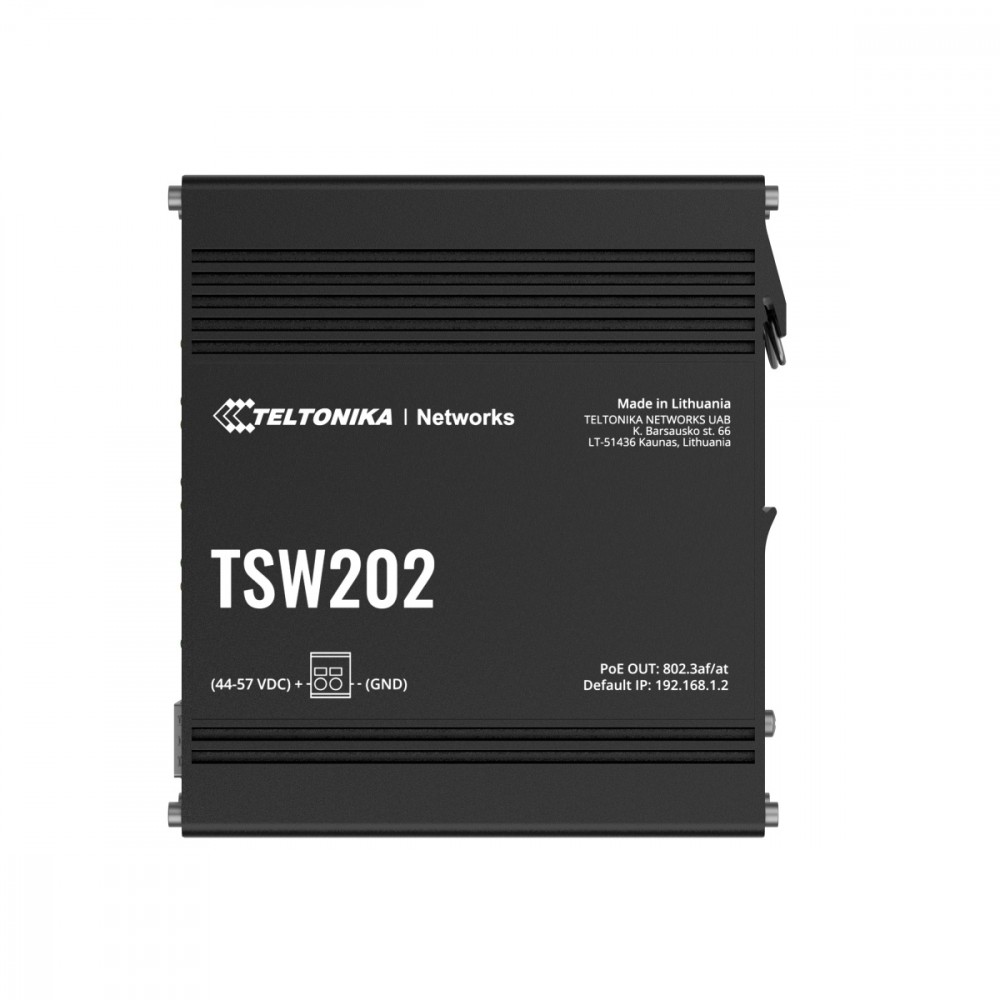

Managed switch TSW202 2xSFP 8xPoE+ Ethernet L2/L3

TELTONIKA

Guarantee: 24 mth
Description: TSW202 is the first managed industrial switch from Teltonika Networks, offering greater control over the flow of data on your network and the role of ports in your solution. PoE+ with a maximum power of 30 W per port and a total power of 240 W for PSE makes the TSW202 centralize power. PoE management gives you greater control over power distribution in your solution, allowing you to enable or disable PoE on selected ports. The switch is equipped with 8 Gigabit Ethernet LAN ports, allowing you to manage, configure and monitor your network. Additional software features, such as QoS, increase effective bandwidth management and the classification and prioritization of network traffic. Designed for industrial environments, the TSW202 features an integrated DIN rail mount, a robust aluminum housing, and resistance to extreme temperatures and vibration, ensuring maximum durability with ease of installation.

Manufacturer's index: TSW202000000
EAN: 4779051840281
Manufacturer: TELTONIKA

Status: available immediately
Availability: 7
To compare Add to wish list
GET A BETTER PRICE ! Write or call and you will receive the support of a dedicated sales representative.
Guarantee: 24 mth
Description: TSW202 is the first managed industrial switch from Teltonika Networks, offering greater control over the flow of data on your network and the role of ports in your solution. PoE+ with a maximum power of 30 W per port and a total power of 240 W for PSE makes the TSW202 centralize power. PoE management gives you greater control over power distribution in your solution, allowing you to enable or disable PoE on selected ports. The switch is equipped with 8 Gigabit Ethernet LAN ports, allowing you to manage, configure and monitor your network. Additional software features, such as QoS, increase effective bandwidth management and the classification and prioritization of network traffic. Designed for industrial environments, the TSW202 features an integrated DIN rail mount, a robust aluminum housing, and resistance to extreme temperatures and vibration, ensuring maximum durability with ease of installation.
Basic
Jumbo frame size:10
Number of SFP ports:2
Throughput:20
Power consumption:240
Packet buffer:512
Weight:610
Number of 10/100/1000 Mbps ports:8
Number of PoE ports (PoE & PoE+):8
MAC address table size:8000
Certificates:CE, CB, RCM, FCC, IC,EAC, UCRF
Chassis type:DesktopRack
Power supply:ExternalInput voltage range: 7 - 57 VDC Input voltage range for PoE: 44 - 57 VDC
Network architecture:GigabitEthernet
Application:Home and small office
Supported protocols and standards:IEEE 802.3af IEEE 802.3at
Switch layer:L2+
Switch class:Managed
Stackability:No
Fan:No
Number of 10/100 Mbps ports:None
10/100/1000/2500 Mbps ports:None
Number of PoE+ ports:None
Number of COMBO ports:None
Number of 10Gb ports:None
Number of SFP+ ports:None
Environment requirements:Operating temperature: -40°C to 75°C
Support for Jumbo frames:Yes
Dimensions:132 x 44.2 x 122.2 mm
Console port:No
Number of SFP56 ports:None
